In heatsink selection, the conventional wisdom goes: extruded aluminum is cheap and reliable; bonded fins offer more surface area but introduce vibration sensitivity. That framing works — until your thermal budget tightens and your enclosure won't budge.
When height is constrained and heat flux density iigh, the real question becomes: what actually sets the performance ceiling of a heatsink in a fixed space?
The answer: fin density — and the manufacturing process that determines how much fin density you can achieve.
Extrusion works by forcing an aluminum billet through a precision die under high pressure. The physics of material flow impose hard constraints: fins must maintain a minimum thickness (typically ≥1.2 mm), and inter-fin gaps cannot be reduced beyond a point where aluminum flow stalls and die life deteriorates sharply.
With a fixed height — say, 73 mm — the number of fins is essentially locked in by the process. So is the total heat dissipation area. You can optimize the alloy, the surface finish, or the airflow path, but you cannot escape the density ceiling that extrusion imposes.
Bonded (inserted) fin heatsinks break the extrusion density barrier by assembling fins individually and joining them to a base plate via soldering or brazing. Higher fin counts become possible — but a new problem emerges at every joint.
Solder paste has a thermal conductivity of approximately 60 W/m·K. Aluminum is around 200 W/m·K. Every bonded interface introduces a thermal resistance penalty that solid metal simply doesn't have. Worse, under repeated thermal cycling, micro-voids can form in the solder layer — progressively degrading heat transfer over the product's service life.
The trade-off: more surface area, but at the cost of a compromised conduction path from base to fin tip.
Skiving is a subtractive machining process that cuts and lifts fins directly from a solid metal block — no joints, no solder, no bonding layer. The result is a monolithic structure where heat flows continuously from the base through every fin without interruption.
This changes the equation on several levels:
No thermal resistance at the joint — the heat conduction path is unbroken aluminum throughout
Fin density beyond extrusion limits — fin thickness as low as 0.3–0.6 mm and pitch as tight as 1.0–2.0 mm are achievable, compared to the ≥1.2 mm minimum typical of extruded designs
Geometric flexibility — curved fins, annular configurations, and profiles matched to non-standard airflow ducts are all possible, allowing every millimeter of constrained space to contribute to cooling
When height is fixed and heat flux density is high, skiving currently offers the highest achievable surface area within that constraint — without the thermal penalties introduced by bonded fin assemblies.

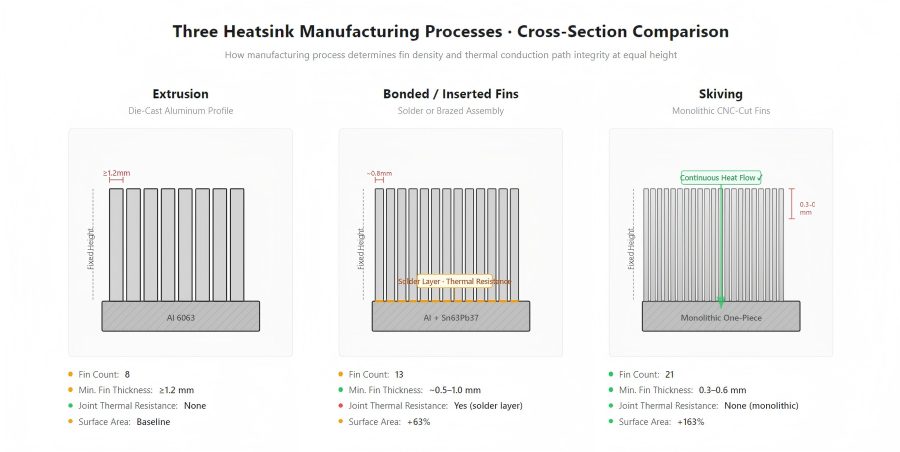

| Extrusion | Bonded Fins | Skiving | |
|---|---|---|---|
| Fin thickness | ≥1.2 mm | ~0.5–1.0 mm | 0.3–0.6 mm |
| Joint thermal resistance | None | Yes (solder layer) | None |
| Long-term reliability | High | Degrades under cycling | High |
| Geometric flexibility | Low | Medium | High |
| Best for | Standard designs, cost-sensitive | Higher density needs | High flux, constrained height |
When height is fixed, the performance ceiling of a heatsink is set by fin density. And the ceiling of fin density is set by the manufacturing process.
For applications where thermal resistance reduction and heat flux density are the governing constraints, skiving delivers what neither extrusion nor bonded fin designs can: maximum surface area, continuous heat path, no compromise.
