The advent of 5G technology has revolutionized mobile connectivity, enabling faster data speeds, lower latency, and enhanced user experiences. However, this leap forward comes with a significant challenge: heat. As smartphones evolve to support 5G’s high-performance demands, advanced thermal management solutions like Vapor Chambers (VC) and Heat Pipes have emerged as critical components to ensure device reliability and longevity. Let’s explore why these technologies are indispensable in the 5G era.
5G smartphones integrate powerful processors, multi-band RF frontends, high-resolution displays, and fast-charging batteries—all of which generate substantial heat. Key heat sources include:
Chipsets: 5G chipsets, such as Qualcomm’s Snapdragon or Apple’s A-series, consume up to 5x more power than their 4G counterparts, with heat density doubling.
RF Components: Massive MIMO antennas and increased frequency bands (sub-6 GHz and mmWave) require more power amplifiers and filters, escalating thermal output.
High-Resolution Displays: 2K/4K screens and high refresh rates strain GPUs and generate additional heat.
Battery Systems: Fast charging (e.g., 120W) and wireless charging further contribute to heat buildup.
Without efficient cooling, excessive heat can degrade performance, trigger throttling, and reduce device lifespan. Studies show that electronic component reliability drops by 10% for every 2°C temperature rise, and their lifespan at 50°C is just 1/6th of that at 25°C.
Historically, smartphones relied on passive cooling through materials like thermal gels, graphite sheets, or metal plates. While effective for low-power 4G devices, these solutions struggle with 5G’s thermal demands. Enter Heat Pipes and VC Vapor Chambers—two phase-change cooling technologies that excel in heat dissipation.
A heat pipe is a sealed copper tube containing a working fluid (e.g., water or ethanol). When heat is applied at one end (evaporator), the fluid vaporizes, carrying thermal energy to the cooler end (condenser), where it condenses and flows back via capillary action.
Advantages: High thermal conductivity (10,000–100,000 W/m·K, 20x that of copper), lightweight, and slim profiles (as thin as 0.4mm).
Application: Widely used in laptops and mid-tier smartphones for localized cooling.

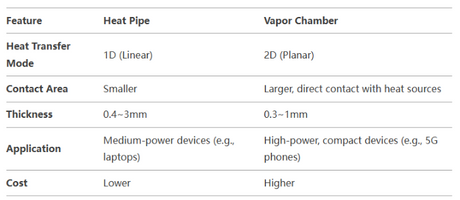

A VC is a flat, sealed copper plate with an internal microporous wick structure and vaporizable fluid. Unlike heat pipes’ 1D conduction, VCs spread heat two-dimensionally, enabling uniform temperature distribution across a large surface area.
Advantages:
2D Heat Transfer: Covers broader contact areas, ideal for hotspots like processors.
Lower Thermal Resistance: Direct contact with heat sources eliminates intermediate layers (e.g., base plates).
Ultra-Thin Designs: Modern VCs are as slim as 0.3mm, fitting seamlessly into compact devices.
Performance: VCs improve heat dissipation efficiency by 20–30% compared to heat pipes.
VC technology is rapidly advancing to meet 5G needs:
Material Innovation: Stainless steel and composite materials enhance durability while reducing weight.
Fabrication Advances: Laser welding replaces traditional soldering for thinner, leak-proof seals.
Capillary Structure Optimization: Etched microgrooves and sintered copper mesh boost fluid circulation.
Automation: Automated fluid injection and quality control streamline production, reducing costs.
According to Yole Développement, the global market for smartphone VC solutions could exceed ¥9 billion (CNY) by 2025, assuming 30% adoption in 5G devices at ¥15 per unit.
High-end devices now combine VCs and heat pipes for maximum efficiency. For instance, gaming smartphones use VCs to spread heat across the chassis, while heat pipes channel it to secondary radiators. Laptops like Dell’s Alienware series integrate “3D Vapor Chambers” that merge vertical heat pipes with horizontal VCs, creating a seamless cooling loop for CPUs and GPUs.
As 5G smartphones push performance boundaries, thermal management is no longer optional—it’s a cornerstone of device design. VC vapor chambers and heat pipes offer unmatched cooling efficiency, enabling thinner, faster, and more reliable devices. With ongoing innovations in materials, manufacturing, and integration, these technologies will remain at the forefront of the battle against heat, ensuring 5G’s promise is fully realized.
References: Yole Développement, Trivision Etching Technology, Frost & Sullivan
