In the rapidly evolving world of data centers, liquid cooling systems have emerged as a critical component for managing the increasing thermal loads generated by high-performance servers. As the demand for more efficient and cost-effective cooling solutions grows, manufacturers and operators are exploring various strategies to reduce the costs associated with these systems. This article delves into several key areas where significant cost reductions can be achieved, focusing on design optimization, material cost control, manufacturing process upgrades, technology route selection, scaling and supply chain optimization, and operation and maintenance cost reduction.
One of the most effective ways to reduce costs is through design optimization. By simplifying the architecture and moving towards modular designs, manufacturers can significantly lower production and maintenance costs. For instance, integrating cold plates with piping (similar to Tesla's Dojo integrated cold plates) can reduce the number of connection points, thereby decreasing the risk of leaks and lowering the overall system cost by 15%-20%. Additionally, adopting standardized interfaces (such as ISO 16028) allows for compatibility with different brands of pumps and radiators, reducing the need for costly custom development by approximately 10%.

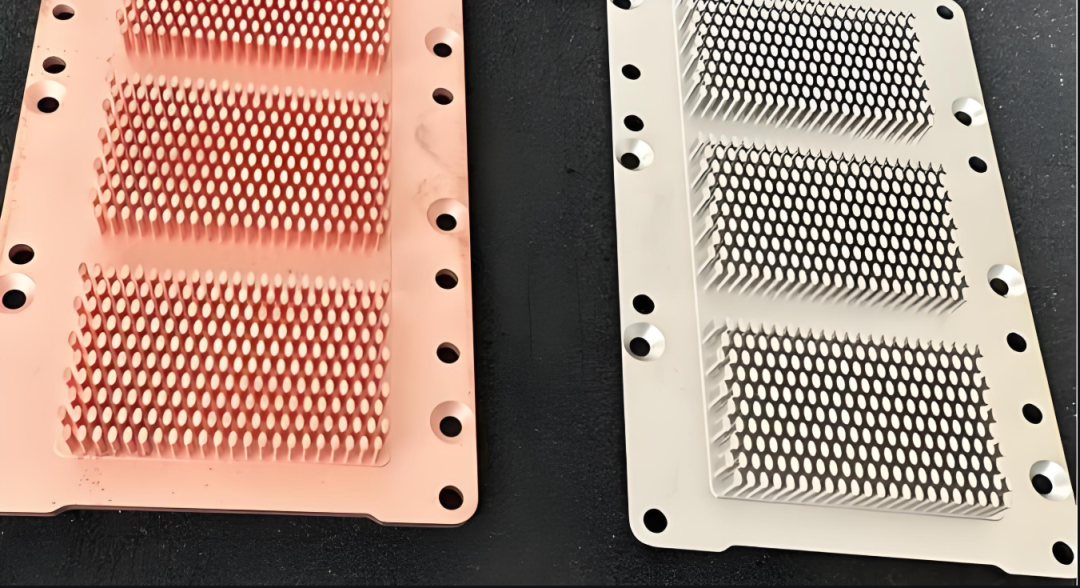

Utilizing computational fluid dynamics (CFD simulations) can lead to substantial cost savings. By optimizing the flow channels in cold plates (as seen in Tesla's snake-like designs), material usage can be reduced by up to 30% without compromising cooling efficiency. Furthermore, implementing dynamic load matching algorithms, such as Huawei's iCooling AI, can adjust pump speeds based on thermal load fluctuations, resulting in a 30%-50% reduction in pump power consumption.
Material costs can be significantly reduced through the use of alternative materials. For example, replacing pure copper with aluminum-based composite materials (such as 6061-T6 aluminum alloy) can lower costs by 40%-60% while maintaining a thermal conductivity of 80W/mK (compared to copper's 385W/mK). Additionally, applying graphene coatings to aluminum cold plates can reduce their thickness by 30%, thereby decreasing the overall system volume. For working fluids, substituting mineral oil for fluorinated liquids can cut costs by 70%, although it necessitates the addition of insulation layers. Ethylene glycol water solutions are also cost-effective for low to medium temperature applications, with prices as low as $0.5/L, making them ideal for industrial cooling.
Implementing recycling programs can further reduce material costs. Closed-loop circulation systems can recover over 95% of fluorinated liquids, leading to a 60% reduction in annual maintenance costs. Moreover, recycling copper cold plates through electrolysis can achieve recovery rates exceeding 99%, resulting in significant cost savings.
Additive manufacturing, particularly 3D printing, offers substantial cost reductions. Technologies like SLM (Selective Laser Melting) enable the one-step formation of complex flow channels in microchannel cold plates, reducing processing steps by 70% and lowering per-unit costs by 35%. Companies like GE Aviation have demonstrated the efficacy of this approach, achieving a 50% reduction in production time and a 40% decrease in costs for 3D-printed cooling ducts.
Automation in assembly processes can greatly enhance efficiency and reduce labor costs. Robotic welding for cold plate brazing, utilizing robots like FANUC, can increase yield rates from 751 \times 10^{-9} \text{ Pa·m}^3/\text{s}.
The choice between cold plate and immersion cooling technologies can significantly impact costs. For low-power scenarios (<5kW), such as individual server racks, immersion cooling can eliminate the need for cold plates, reducing total costs by 30%. Conversely, for high-power applications (>20kW), such as AI servers, cold plate systems are more advantageous despite higher initial costs due to their lower long-term maintenance expenses.
Hybrid cooling solutions also offer cost benefits. Combining CPU cold plates with GPU air cooling (as seen in the Lenovo ThinkSystem SR670 V3) can reduce overall costs by 25% compared to full liquid cooling. Additionally, integrating phase change materials at the chip level can alleviate the load on liquid cooling systems, decreasing pump power consumption by 40%.
Achieving economies of scale is crucial for cost reduction. Producing over 100,000 units annually can decrease cold plate costs to $30/unit, a significant reduction from the $80/unit cost at smaller scales, primarily due to reduced mold amortization and enhanced supply chain bargaining power. Joint procurement initiatives, where multiple companies pool resources to purchase materials like 3M Novec 7200 fluorinated liquids, can further lower costs by 20%-30%.
Establishing localized production facilities near target markets can drastically cut logistics costs and shorten delivery times. For instance, setting up local cold plate manufacturing plants in regions like Southeast Asia can reduce shipping expenses by 40% and delivery times by 60%.
Implementing intelligent monitoring systems equipped with vibration sensors and AI algorithms can predict pump failures, as demonstrated by Siemens MindSphere, reducing unplanned downtime losses by 30%. Remote diagnostics based on 5G technology can also decrease operational labor costs by 50%.
Designing components for longevity can further minimize costs. Applying corrosion-resistant coatings like PTFE to cold plate interiors can double their lifespan from five to ten years, reducing annual costs by 20%. Simplifying redundant designs and using repairable parts for non-critical components can also decrease spare part expenses by 35%.
By strategically optimizing designs, controlling material costs, upgrading manufacturing processes, selecting appropriate technology routes, scaling production, and enhancing supply chain efficiency, along with reducing operation and maintenance expenses, companies can achieve significant cost reductions in liquid cooling systems. These measures not only enhance profitability but also support the sustainable development of the data center industry. The integration of advanced technologies and innovative approaches will continue to drive down costs, making liquid cooling an even more attractive option for future data center cooling needs.
Through these comprehensive strategies, businesses can ensure that their liquid cooling systems are not only efficient and reliable but also cost-effective, paving the way for a more sustainable and economically viable data center environment.
