500W EPYC Air Cooling Achieved: A 3DVC Solution Replacing Liquid Cooling

Situation

With AMD's 5th Gen EPYC processors surpassing the 500W Thermal Design Power , data centers face a critical choice: adopt complex liquid cooling systems with inherent leakage risks, or seek more reliable and cost-effective air-cooled alternatives. A leading global server manufacturer, while developing its next-generation high-performance computing platform, explicitly required achieving cooling performance comparable to liquid cooling through innovative air-cooling technology. This aimed to reduce Total Cost of Ownership and simplify operations for their end-customers, all while maintaining system stability.

Task

As a professional thermal management solutions partner, we needed to deliver a mass-producible, innovative air-cooling system:

1. Achieve an industry-leading heatsink thermal resistance of ≤0.08°C/W under a sustained 500W load.

2. Ensure CPU temperatures remain below AMD's specified thermal limits under a standard server airflow condition of 45 CFM.

3. Develop an air-cooling solution that directly rivals liquid cooling in performance, while offering higher reliability and lower TCO.

4. Provide complete simulation verification reports and test data to support the client's rapid platform certification.

Action

We adopted a three-pronged development methodology: "Architectural Innovation - Simulation-Driven Design - Manufacturing Validation."

1. Breakthrough Thermal Architecture Design

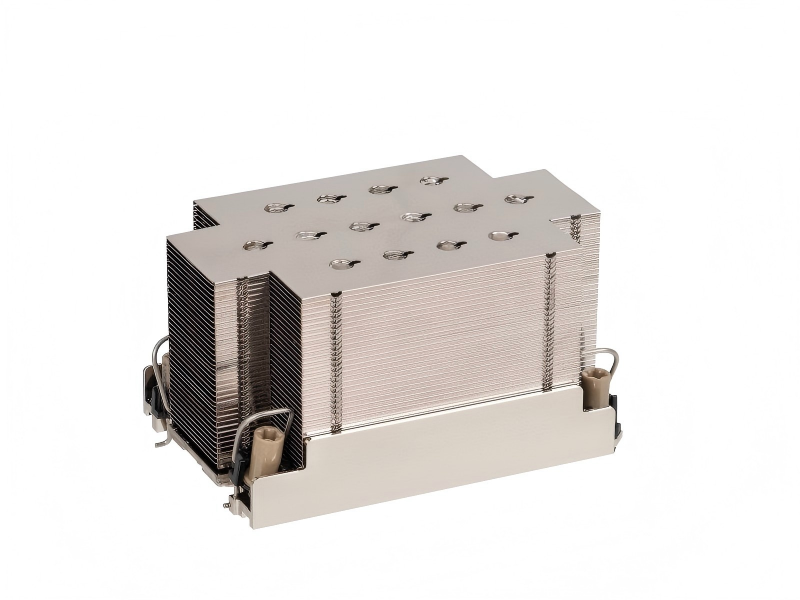

• Employed Partitioned-Tube 3D Vapor Chamber Technology in the TVC004 design to optimize vapor flow paths, maintaining exceptional temperature uniformity under ultra-high heat flux.

• Innovatively designed a Skived-Type Composite Fin Array for the TVC004, utilizing asymmetric fin geometry to maximize heat exchange area while precisely controlling airflow resistance.

• Based on AMD's SP5 package specifications, precisely modeled the thermal distribution characteristics of the IHS and dies, enabling targeted optimization of the TVC004's contact interface design.

2. Multi-Physics Field Co-Simulation

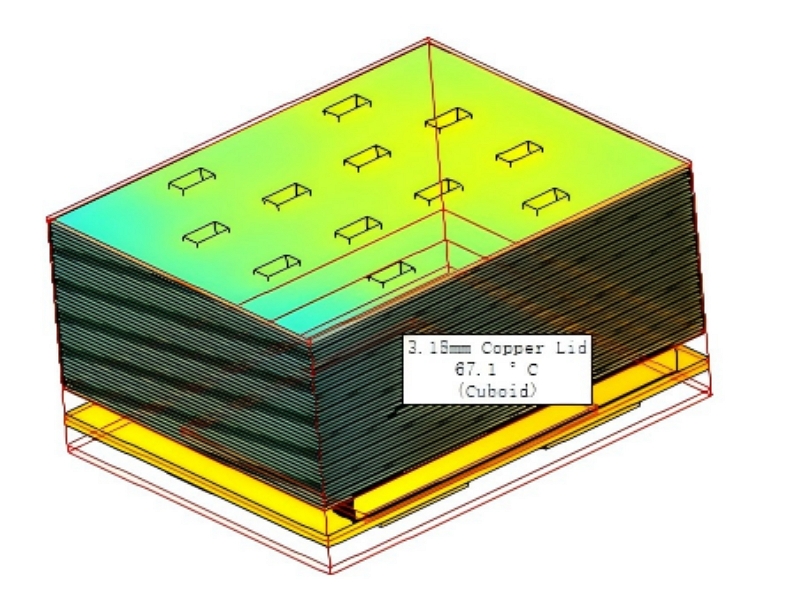

• Conducted Fluid-Solid-Thermal Coupled Simulations on the TVC004 prototype to simultaneously optimize temperature, stress, and flow fields under the extreme 500W operating condition.

• Utilized Parametric Topology Optimization to determine the optimal layout of internal partitions within the TVC004's 3DVC, balancing heat transfer efficiency with structural strength.

• Performed Vibration and Shock Simulation Analysis on the TVC004 to ensure the heatsink's long-term structural integrity during transportation and operation.

3. End-to-End Empirical Verification System

• Built TVC004 engineering prototypes for system-level testing in a server wind tunnel laboratory compliant with ASHRAE standards.

• Deployed a 64-point thermocouple array and high-resolution infrared thermal imager for comprehensive monitoring of the TVC004's temperature distribution uniformity.

• Executed 1500-hour accelerated aging tests and 3-axis random vibration tests on the TVC004 to validate the solution meets data center lifespan requirements of 5-7 years.

Result

The project achieved dual success in both technological breakthrough and commercial value:

1. Performance Benchmark Established

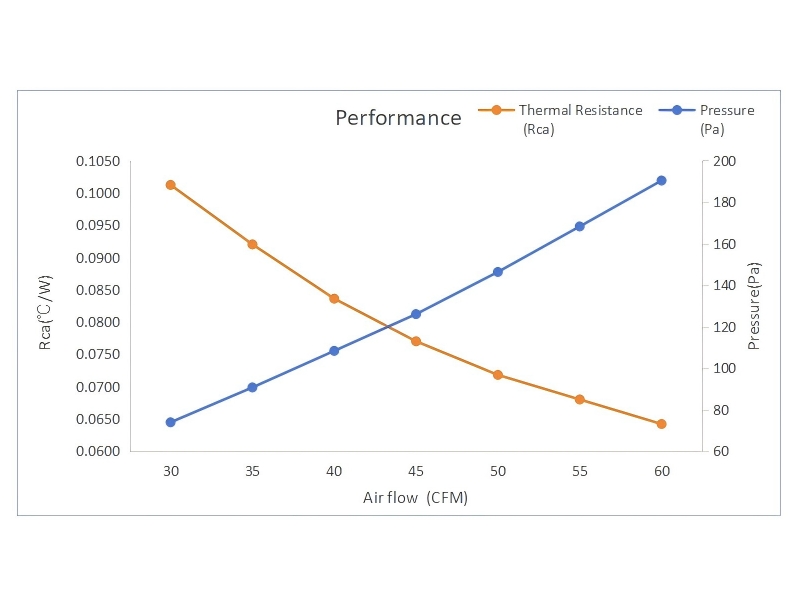

• The TVC004 3D Vapor Chamber Heatsink achieved a measured thermal resistance of 0.077°C/W under a 500W load, exceeding the design target by 3.8% and fully meeting the cooling demands of EPYC 9004 series processors.

• Under 45 CFM airflow, the chip junction temperature was controlled below 82°C, providing ample thermal headroom for the system.

2. Commercial Value Demonstrated

• Compared to traditional liquid cooling solutions, the TVC004 air-cooling solution reduced the client's initial investment cost by 40% and operational costs by 60%.

• The TVC004 completely eliminated the risk of coolant leakage, increasing the system's Mean Time Between Failures (MTBF) to over 250,000 hours.

3. Industry Impact

• The TVC004 solution passed AMD's official cooling solution certification and has been deployed in the client's globally installed HPC and AI server clusters.

• This case demonstrates that the TVC004, through its innovative 3DVC technology, provides air-cooling solutions capable of meeting the thermal demands of next-generation processors, offering a reliable path for data center greening initiatives.
