High-Density GPU Server Thermal Balancing Solution

Situation

A server manufacturer faced significant thermal challenges while developing its next-generation high-density GPU computing platform. The design required integrating four NVIDIA A-Series high-power chips in a 2×2 array layout within a confined space, with each chip dissipating 500W. The client stipulated that the case temperature (Tcase) of each chip must remain below 80°C, and the temperature differential between the front and rear chip groups must be controlled within 3°C to ensure system stability and computational consistency under sustained high loads.

Task

To deliver an efficient, uniform, and mass-producible thermal solution for this project, with the following core objectives:

• Achieve effective heat dissipation under a total thermal load of 2000W, pushing the limits of air-cooling density;

• Address the structural thermal imbalance caused by "front chips obstructing airflow to rear chips," ensuring a temperature differential <3°C;

• Establish a test platform consistent with the client’s system to complete end-to-end performance validation from simulation to prototype.






Action

1. Differentiated Thermal Architecture Design

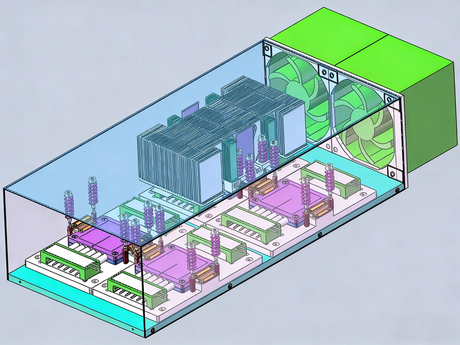

   Adopted the 3D Vapor Chamber Heatsink TVC006 as the core cooling module, leveraging its three-dimensional temperature equalization to achieve efficient thermal balance between chips;

   Innovatively designed an asymmetric "low-front, high-rear" fin layout to optimize internal airflow distribution, significantly improving cooling conditions for rear chips;

   Paired with high-static-pressure fan modules to ensure stable airflow and pressure across the dense heatsink fin array.

2. System-Level Simulation and Testing Validation

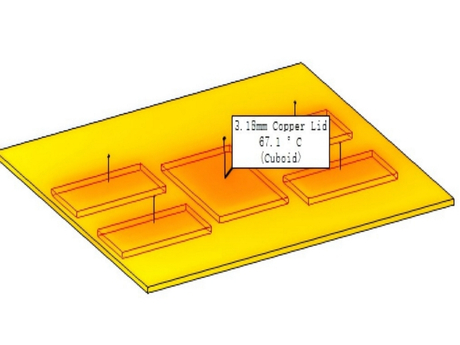

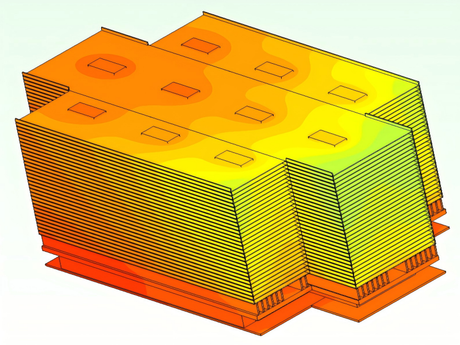

   Conducted multiple rounds of thermal-fluid coupling analysis using CFD simulation platforms to accurately predict temperature fields and airflow organization, guiding structural optimization;

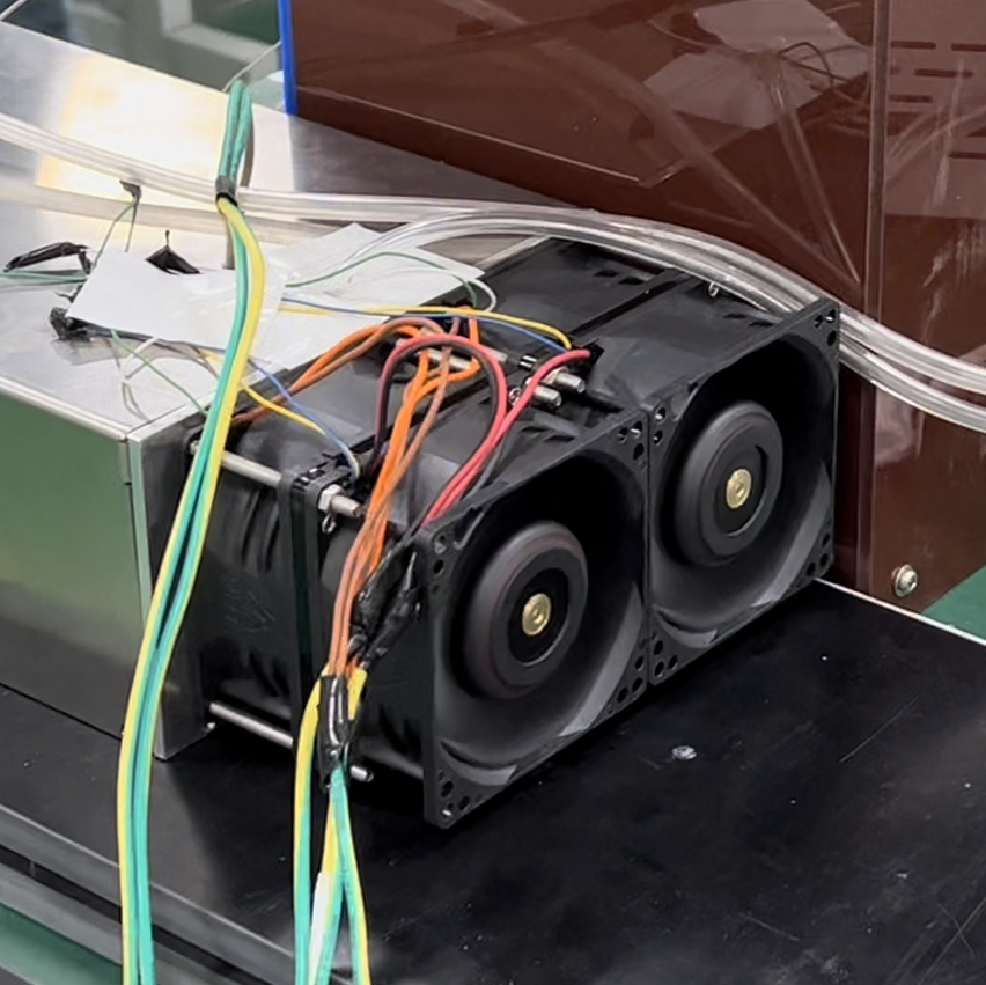

   Built a 1:1 server thermal test platform to replicate real operating conditions, performing temperature rise, differential, and long-term reliability tests; Utilized infrared thermal imaging and multi-point temperature measurement for precise evaluation and iterative optimization of thermal performance.

3. Manufacturability Collaboration and Delivery Support

   Integrated DFM analysis during the design phase to ensure the TVC006 heatsink module offered excellent manufacturability and cost competitiveness; Provided end-to-end ODM services spanning thermal design, prototype development, testing validation, and mass production, accelerating the client’s time-to-market.





Result

• The thermal solution exceeded all client specifications: single-chip Tcase ≤ 78°C, with front-to-rear chip temperature differentials consistently below 2.5°C;

• The 3D Vapor Chamber Heatsink TVC006 successfully passed client system-level validation and is ready for mass production;

• Reduced the client’s thermal validation cycle by approximately 30%, supporting the rapid market launch of their high-density GPU server.
