The heat dissipation capability of a mobile phone often directly affects computing performance, charging time, and download speed. If the heat dissipation is not ideal, it will often restrict the performance of the mobile phone. Conversely, a reasonable and efficient heat dissipation structure will become a boost for high-speed operation of mobile phones. Below we mainly analyze the heat dissipation of Xiaomi 10.
The Xiaomi 10 series has a new layout and many optimizations in terms of heat dissipation. It uses a large-area VC, graphene, and multi-layer graphite to form a three-dimensional heat dissipation system with a matrix temperature sensor, which allows the Xiaomi 10 series to provide a cool and smooth experience in high-load computing games, fast charging and 5G high-speed downloads.

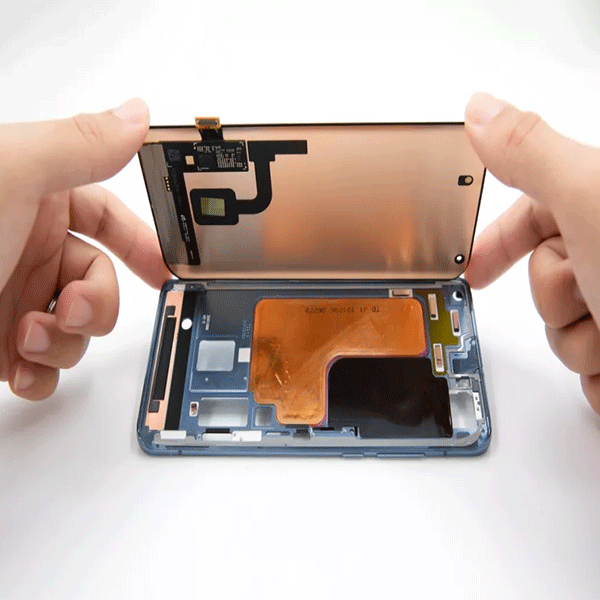

Xiaomi 10 is customized and optimized on the stacked structure. The large area contact between the VC heat sink and the middle frame greatly improves the heat conduction efficiency. With full hot-spot overlay layout and large-area mid-frame contact, it greatly improves the heat dissipation ability of high-load computing, it quickly removes core heat and efficiently dissipates heat . In addition to the super-large area VC heat sink, the Xiaomi 10 series also built-in 6 layers of graphite sheets to supplement the heat dissipation. The graphite coverage of the mobile phone reached more than 70% of the entire device, making the overall temperature of the phone more uniform.

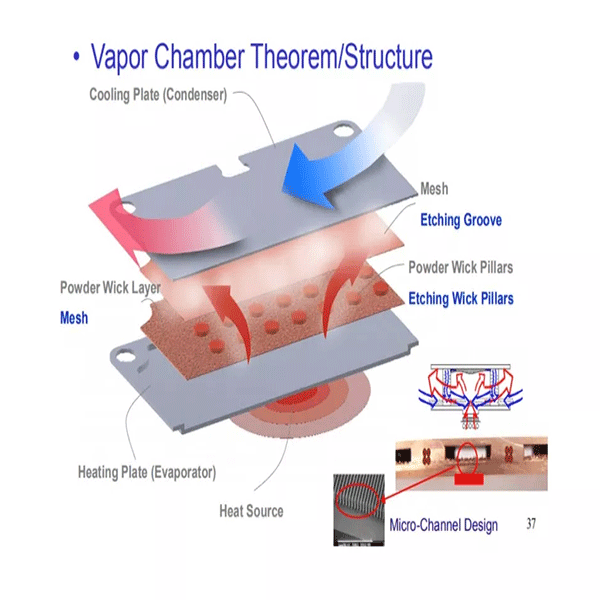

In addition, Xiaomi 10 uses a large amount of copper foil and thermally conductive gel inside. The heat dissipation ability covers every small detail inside the machine. With the large-area vapor chamber heatsink(vapor chamber cpu cooler), graphene and 6-layer graphite structure, this constitutes an efficient full azimuth cooling system.It greatly improves the overall heat dissipation capability of Xiaomi 10.
The heat of the mobile phone will reduce the frequency. Most of the performance strategy of the mobile phone is based on temperature, which is extremely critical for temperature measurement. The Xiaomi 10 series has a built-in matrix temperature sensor. Multiple temperature sensors are arranged inside the machine to accurately sense the chip, CPU, camera , battery, charging interface and other areas of temperature, it realizes real-time monitoring of the temperature of the mobile phone various areas.
Relying on multiple internal temperature sensors, Xiaomi 10 adopts AI-based machine learning temperature control strategies. Through the real-time temperature data of different areas of the mobile phone, it matches the most suitable AI temperature control model, and reasonably deploys the temperature control strategy of the entire mobile phone. The temperature control is more precise and delicate.
The luxurious cooling hardware configuration and the intelligent temperature control software algorithm, which enable the Xiaomi 10 series to efficiently dissipate heat during high-speed operation, fast charging, and 5G high-speed downloading, and give full play to the comprehensive performance of the Xiaomi 10 Series. Acctually, a good cpu cooling solution determine the performance of cpu to some degree, if you want to purchase vapor chamber cpu cooler or custom VC heatsink, welcome to contact us!
