If you work on server cooling, you've probably noticed the same trend: CPUs are getting hotter.
We used to say the limit for a 1U server cooling solution was around 150W. Now customers come to us asking for 200W, 250W, even more. Recently, a Russian customer needed cooling for an Intel ICE LAKE processor inside a high-density 1U chassis, with TDP pushed all the way to 270W—a classic high TDP CPU cooling solution challenge.So what's the move? Push through or switch to a bigger chassis?
This isn't another theoretical piece. It's a real project we completed last year. If you're dealing with 1U chassis cooling upgrade headaches, this might give you some ideas.
Last year, a Russian data center hardware manufacturer reached out.
Their requirement was straightforward: they needed to run an Intel Xeon 3rd Gen processor (ICE LAKE) inside a 1U server, with a TDP of 270W.
Anyone who's done server cooling knows the drill. A traditional 1U cooler (44.45mm height) tops out around 150W. Once you cross 200W, you're usually in 2U territory. A 1U server cooling solution for 270W—by conventional wisdom, this was almost impossible.
Here's what the customer said:
"We don't want to switch to 2U just to run this CPU. Right now, we fit 24 units per rack. If we go 2U, that drops to 12. Our rack space efficiency gets cut in half, and our colocation costs double."
The goal was clear. The challenge was real: the same tiny space, but nearly double the heat. What now?
Initially, we thought about the obvious tweaks—denser fins, higher fan speeds.
But the simulations told a harsh truth: with a conventional design, even if the fan screamed like a vacuum cleaner, the temperatures wouldn't hold. Physics is physics—without enough surface area, more airflow only does so much.
So we shifted gears. If we couldn't go taller, we'd go wider—into every corner of the chassis.
We borrowed the logic behind Intel's EVAC cooler architecture. The execution was actually pretty straightforward:
1. Heat pipes move the heat out
Use heat pipes to pull heat away from the CPU and carry it to unused areas inside the chassis—next to the drive bays, near the power supply, anywhere with empty space
2. Pack those corners with fins
Any spot that gets airflow, we filled with fin stacks. No space left unused
3. Double the surface area
Same height, but the total fin area more than doubled compared to a standard 1U cooler
This custom server CPU cooler solution was all about one thing: stop fighting for height, start fighting for space utilization.
Once we had the concept, the customer asked the obvious question: "How do you know it'll work?"
Fair point. For a solution that pushes past conventional limits, words aren't enough. We did two things:
First, we ran a full-system simulation.
Not just the cooler. We modeled the entire chassis—motherboard layout, drive positions, power supply, airflow paths. We watched where the air moved, where the hotspots formed. After a few rounds of tweaking heat pipe layouts and fin placements, the simulation showed 270W was achievable. Only then did we move forward. This is exactly what high TDP CPU cooling solution is about—without simulation, who would take on a project like this?

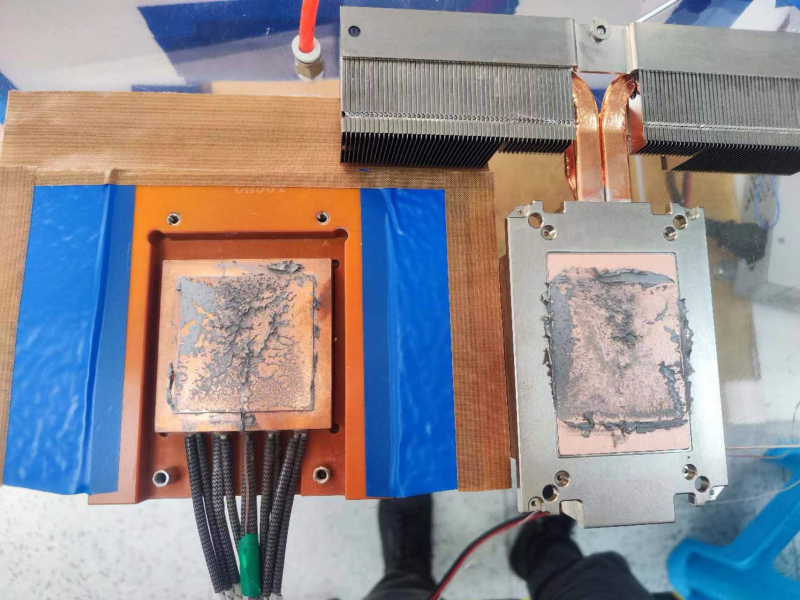

Second, we built samples and shipped them to Russia.
Simulations are one thing. Real-world performance is another. The customer ran their own tests—full load, temperature monitoring, throttling checks, long-term stability.
The results came back: Pass. 270W full load, temperatures within spec, no throttling.
The customer got exactly what they needed: server cooling with no throttling.
After the project wrapped up, we ran the numbers:
| Approach | Rack Space | Cooling Capacity | Customer Cost |
|---|---|---|---|
| Traditional | Must switch to 2U | Handles 270W | Rack space halved, costs doubled |
| Our Solution | Stays in 1U | Handles 270W | Same space, same cost |
For the customer, the savings weren't about the cooler. They were about data center rent.
Still 24 units per rack instead of 12. When you explain it that way, the ROI speaks for itself.
This project reminded us of a few things worth sharing:
1. Don't let old rules limit you
"1U maxes out at 150W" is yesterday's thinking. CPUs are drawing more power now, and cooling designs need to evolve. A structural rethink can change the game. Our experience with 1U server cooling solution proves that limits can be pushed.
2. Simulate the whole system, not just the cooler
A cooler doesn't live in a vacuum. The chassis layout, the airflow path, the component placement—they all matter. Simulate everything to find the real bottlenecks. High TDP CPU cooling solution isn't just a buzzword—it's how we help customers avoid costly mistakes.
3. Customers trust real data
Talk is cheap. Send them samples, let them run their own tests. Numbers don't lie. When customers ask for server cooling with no throttling, passing real-world tests means more than any promise.
4. Most chassis have wasted space
The problem isn't always "not enough space." It's often "space you're not using." Heat pipes let you put that wasted space to work. The results can surprise you. This approach works not just for ICE LAKE, but for other high-TDP CPUs as well. If you're considering a 1U chassis cooling upgrade, this approach is worth a look.
More and more customers are running into the same wall:
New CPUs draw too much power for old chassis designs
You don't want to sacrifice rack density for better cooling
You have a tough custom requirement and need a partner who's been there before
If you're dealing with these challenges, feel free to reach out. You can also check out our detailed case study or browse our related products.
We can start with a free simulation to see how much unused cooling potential is hiding inside your chassis. We've handled plenty of custom server CPU cooler requests—maybe a conversation is all it takes to find the breakthrough.
