How to Cool Two 13W Heat Sources in 10CFM? A Tier1 Optical Module Success Story

The Problem That Brought Them to Us

Here's a scenario that's becoming all too familiar in the optical module world:

Power keeps climbing. The form factor? Locked in concrete.

As the industry races from 400G to 800G and beyond, power consumption has exploded—from a few watts to 15W, 20W, even higher. But the mechanical envelope? Same as it was a decade ago. Same tiny box. Same cramped quarters.

Last year, a global Tier1 telecommunications equipment manufacturer came to us with a nightmare scenario. Their QSFPDD coherent optical module was hitting a thermal wall—hard:

• Two heat sources, each pumping out 13W

• Crammed into a 27x13mm footprint—literally touching each other

• Only 10CFM of airflow from the system. That's it. No more.

• Target thermal resistance: 0.6°C/W or bust

Do the math. At 10CFM, squeezing 26W total heat into a 0.6°C/W envelope means every single fin, every heat pipe, every interface has to be damn near perfect. There's zero margin.

They'd shopped around. Some suppliers couldn't hit the numbers. Others could do prototypes but vanished when talk turned to production. What they needed wasn't a "cooler vendor." They needed a partner who could own design, manufacturing, and testing—end to end, no handoffs, no excuses.

We took the bet.

What Made This a Nightmare

Let's spell it out:

The customer had tried multiple approaches before coming to us. All failed. Common thread? None of them properly accounted for how two heat sources, sitting cheek-by-jowl, would torch each other.

Our Approach: Don't Give Them One Answer. Give Them Choices.

When we sat down with their team, we pitched something different:"Let's run two parallel tracks. One prioritizes speed to market. The other prioritizes cost. You decide which makes sense for each program."

First, the mechanical solution:

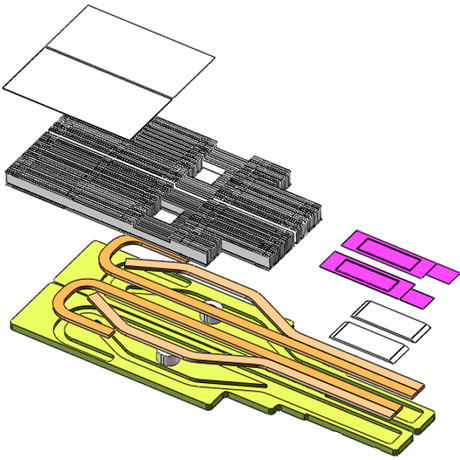

Two heat sources side by side is a thermal engineer's worst nightmare. Our fix? A mirror-image design—two independent coolers, left and right, linked by a bracket. Each handles its own heat source independently. No competition. No interference.

Second, the technology stack:

We didn't gamble on a single approach. We put four combos through the wringer:

We ran full-system simulations on all four—not just the coolers in isolation, but the whole system: module, PCB, airflow path. Let the data pick the winners.

Execution: Simulate Thoroughly. Then Let Hardware Talk.

Step 1: Simulation

We built a complete thermal model. Module. Board. Airflow. Watched where the air moved, where hotspots formed. Iterated on heat pipe and VC layouts. Swapped fin materials. Ran the numbers until they screamed.

Two paths emerged:

• Vapor chamber + copper fins was the brute—force winner rock solid.

• Heat pipe + copper fins showed real promise—with a cost edge.

Step 2: Parallel prototyping

Simulation tells you what should work. Customers trust what actually works.

We pushed both tracks hard:

• VC prototypes first—aiming to hit their program timeline

• Heat pipe prototypes in parallel—aiming to hand them a cost-saving alternative for future projects

Samples landed at their lab. They ran their own gauntlet: full load, thermal resistance, long-term stability. No shortcuts. No hand-holding.

Results: Both Tracks Delivered.

The vapor chamber solution passed—first try.

Test data came back: thermal resistance? 0.6°C/W and below. Stable. Repeatable. Production-ready. The customer flipped the switch. Today, that design is shipping in their gear.

The heat pipe solution passed—a few weeks later.

Same thermal performance. Lower BOM cost. The customer's lead engineer summed it up:"Most suppliers give you one answer. You gave us options. That's not how this usually works."

What the Customer Walked Away With

They didn't buy a cooler. They bought options—and the peace of mind that comes from knowing both options are battle-tested.

Lessons from the Trenches

1. Optical module cooling is a geometry war

You've got X cubic millimeters and Y watts. The only variable is how ruthlessly you use every micron. Mirror-image layouts. VC vs. heat pipes. Copper fins vs. aluminum. It's all about extracting more from the same brutal envelope.

2. Giving customers choices builds trust—fast

We could've pushed one solution. Instead, we let them decide based on their priorities: speed or cost. That move, more than any thermal spec, is what sealed the deal.

3. Simulation pays for itself—every time

Without running all four combos upfront, we'd have burned at least two extra prototype rounds. Simulation didn't just validate designs. It saved months and thousands of dollars.

4. Tier1s don't buy components. They buy capability.

They're not searching for a part number. They're searching for a partner who can take them from "we have a problem" to "problem solved" without dropping the ball. Our in-house design-to-production chain made that possible.

If You're Facing Something Similar

• Optical module power keeps climbing. The form factor won't budge.

• Two heat sources, cheek-by-jowl, torching each other.

• Airflow is limited, and you're struggling to hit your thermal targets.

• You're tired of vendors who do prototypes but ghost you at production.

Let's talk. We'll run a preliminary simulation on your module—free—and show you exactly how much headroom is hiding in your current design.

Contact Our Engineering Team for a Free Thermal Simulation
