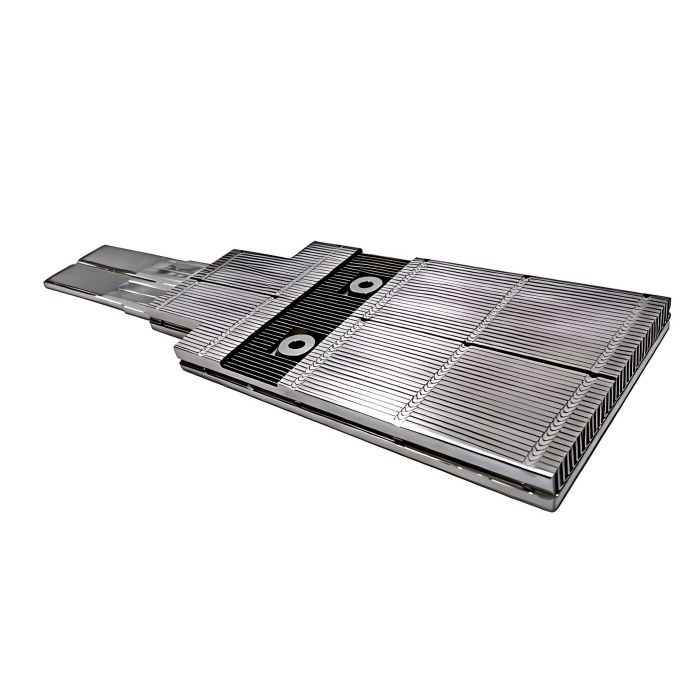

VC002 Vapor Chamber Heatsink for QSFP-DD Optical Modules

Product Overview

The VC002 is an ultra-thin vapor chamber heatsink with zipper fin array, purpose-engineered to solve the thermal concentration challenge facing high-density QSFP-DD optical communication modules deployed on telecom and data center line cards.

What sets VC002 apart begins with its form factor: 218 × 75 × 10 mm. At just 11.4 mm total height, VC002 is designed for applications where the available vertical dissipation space is insufficient for conventional heatsinks — a constraint that is increasingly common as optical module density on line cards continues to climb. By integrating an ultra-thin vapor chamber into this razor-slim profile, VC002 fundamentally expands the effective heat dissipation area beyond what the physical module footprint would normally allow.

The core innovation of VC002 is its approach to thermal concentration avoidance. In high-port-count optical communication equipment, QSFP-DD modules are mounted in closely packed rows. Without effective lateral heat spreading, heat generated by one module accumulates and compounds with adjacent modules — creating thermal "pileup" zones that degrade optical signal integrity, reduce component lifespan, and may trigger thermal throttling. VC002's vapor chamber prevents heat concentration by distributing this load laterally and evenly before it reaches the fin field, eliminating hotspot stacking before it can develop.

All external surfaces are finished with nickel plating, delivering the corrosion resistance and thermal interface material compatibility expected in telecom and data center deployments.

Key Specifications

The Thermal Problem VC002 Solves

Heat Concentration in High-Density Optical Module Arrays

Modern optical communication line cards pack QSFP-DD ports at densities that create a fundamental thermal management problem: localized heat concentration.

Each QSFP-DD module generates substantial thermal load from its DSP ASIC, modulator driver ICs, and TIA front-end. When these modules are arrayed in the compact port configurations of 400G/800G line cards, their thermal fields overlap and reinforce — creating aggregated hotspots that no single-module heatsink design can address in isolation.

The consequences are severe and measurable:

• Optical wavelength drift as laser junction temperatures rise beyond stable operating windows

• DSP error rate escalation correlated directly to thermal stress on coherent processing silicon

• Accelerated aging and reliability degradation in modules operating continuously above their thermal design point

• System-level thermal throttling when chassis management detects sustained over-temperature conditions

Conventional approaches — standard extruded aluminum heatsinks, individual stamped fin designs — fail here because their solid-metal construction cannot efficiently spread heat laterally within the 10 mm height constraint. Heat accumulates where it is generated; it cannot escape fast enough to prevent concentration.

Why Ultra-Thin Vapor Chamber Changes the Equation

VC002 replaces the solid conductive base found on conventional heatsinks with an ultra-thin vapor chamber — a sealed two-phase heat transfer device that achieves effective thermal conductivities of 5,000–20,000 W/m·K in the spreading plane, even within an 10 mm total stack height.

The mechanism: an internal working fluid evaporates at the thermal load sources (the hottest zones under the module array), travels as vapor across the full 218 × 75 mm internal cavity, condenses uniformly at cooler regions, and returns via capillary wick structure — continuously and passively, without any moving parts. The result is a near-isothermal base plane across the entire heatsink footprint, ensuring that heat from every module in the array is distributed evenly into the zipper fin field above.

This ultra-thin VC architecture expands the practical heat dissipation area available to each QSFP-DD module — not by physically growing the heatsink, but by making the entire shared thermal plane available to every heat source simultaneously.

Why VC002 for QSFP-DD Optical Communication Equipment?

① Ultra-Thin Profile — 10 mm Total Height

At 218 × 75 × 10 mm, VC002 is designed to fit within the mechanical keep-out constraints of dense optical line card layouts where taller heatsinks simply cannot be accommodated. This is not a compromise — it is the design target. The ultra-thin vapor chamber enables performance that would normally require significantly more vertical space, making VC002 viable in form factors where thermal performance has historically been sacrificed to meet height requirements.

② Vapor Chamber Heat Spreading — Defeating Thermal Concentration

The integrated vapor chamber addresses the root cause of thermal concentration in multi-module optical arrays. By achieving near-uniform base temperature distribution across 218 × 75 mm, VC002 ensures no individual module accumulates disproportionate thermal load regardless of its position within the array. Peak-to-valley temperature variation across the heatsink base is dramatically reduced compared to solid-metal alternatives — delivering consistent thermal performance to every port in the module row.

③ Zipper Fin Array — High Surface Area in Minimum Volume

The air-side heat exchanger of VC002 employs a zipper fin (folded fin) construction, which achieves significantly higher fin density and surface area within the constrained 10 mm height budget compared to extruded aluminum alternatives. Thinner individual fin walls and tighter inter-fin spacing translate directly to more heat-dissipating surface area per unit volume — maximizing convective efficiency within the available airflow path across the optical module face.

④ Nickel Plating — Telecom-Grade Reliability

The full nickel plating on VC002 provides:

• Corrosion resistance in data center and telecom equipment environments

• Galvanic protection at the vapor chamber copper-aluminum interface

• TIM compatibility with thermal pads and phase-change interface materials used in optical module assembly

• Surface integrity through repeated module installation and removal cycles over the equipment service life

Applications

• QSFP-DD optical modules — 400G/800G coherent and direct-detect optical transceivers on high-density line cards

• Telecom optical communication equipment — OTN, ROADM, and coherent line systems with dense optical module arrays

• Data center switch and router line cards — High-port-count 400G/800G switching platforms with constrained thermal budgets

• 5G transport optical modules — Compact coherent optics for fronthaul and backhaul network equipment

• Dense Wavelength Division Multiplexing (DWDM) platforms — Multi-channel coherent systems with port density constraints

Conclusion

For optical communication equipment deploying QSFP-DD modules in high-density configurations, the VC002 ultra-thin vapor chamber heatsink provides a purpose-built thermal solution to the heat concentration challenge. By integrating two-phase vapor chamber spreading technology into an 10mm height envelope, VC002 expands effective heat dissipation capacity without consuming additional vertical space — delivering the thermal performance that dense optical module arrays require while respecting the mechanical constraints that define their operating environment.

Get in Touch

Evaluating VC002 for your optical communication platform?

Contact our thermal engineering team for application analysis, samples, and technical consultation. OEM solutions and custom configurations are available — share your platform dimensions and thermal requirements for a tailored recommendation
