ZH001
| Quantity: | |
|---|---|

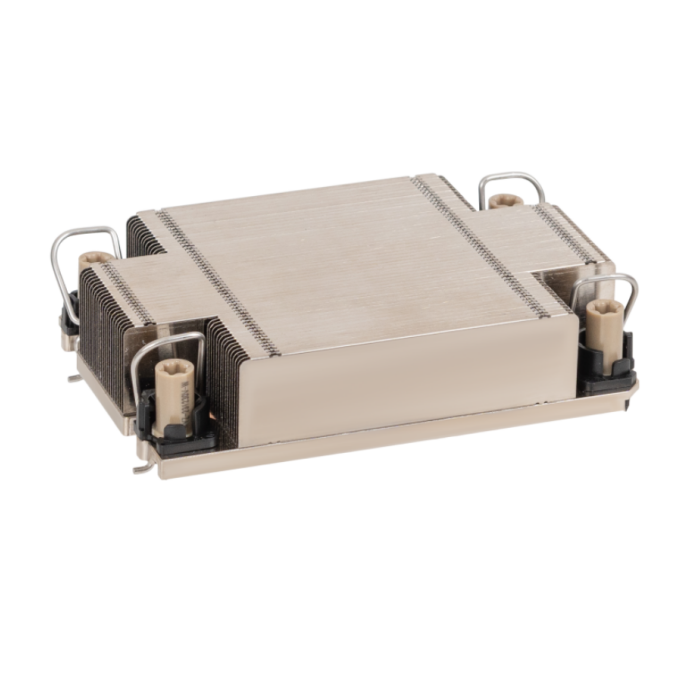

The ZH001 is a high-performance zipper fin heatsink specifically designed for Intel Whitley platform 1U servers. Utilizing zipper fin, heat pipe, and copper baseplate composite technology, it achieves 205W stable cooling capacity within standard 1U chassis space. As a professional server thermal solution provider, we help server manufacturers unleash the full performance potential of Intel Whitley platform processors within compact 1U space.
Intel Whitley Platform Dedicated: Optimized for Intel Whitley platform 1U servers.
205W Cooling Capacity: Stable heat dissipation within standard 1U space.
Composite Cooling Technology: Zipper fins + heat pipes + copper baseplate, industry-leading efficiency.
Compact Dimensions: 113×78×25.5mm, perfect fit for 1U chassis.
Nickel Plating Surface Treatment: Oxidation and corrosion resistant, adapting to data center environments.
OEM Customization Services: Complete solutions for server manufacturers.
Zipper Fin Process: Precision zipper-style interlocking arrangement technology maximizes cooling area within the 25.5mm height limit. 0.15mm ultra-thin aluminum sheets arranged alternately create unique airflow turbulence channels, increasing heat transfer coefficient by over 25%. The zipper structure also enhances the structural strength of the fin array, providing excellent vibration resistance.
Heat Pipe Efficient Conduction: Four high-performance heat pipes are optimized for the thermal distribution of Intel Whitley platform processors. The heat pipes feature flattened bend designs, achieving rapid and uniform heat transfer within the 1U height restriction, ensuring quick heat extraction from CPU hotspot areas.
Copper Baseplate Precision Machining: High-purity copper baseplate with thermal conductivity of 398W/m·K. Baseplate surface flatness <0.05mm ensures perfect contact with the CPU IHS. Precision milling minimizes contact thermal resistance, maximizing the cooling efficiency of the heat pipes and fins.
Nickel Plating Surface Treatment: 8-12μm electroplated nickel layer passes salt spray testing, meeting data center environmental requirements. The nickel-plated surface resists oxidation and corrosion, maintaining良好 cooling performance over long-term use and extending product service life.
The ZH001 heatsink is specifically designed for Intel Whitley platform 1U servers, suitable for deployment scenarios such as data centers, enterprise virtualization platforms, and edge computing nodes. It provides 205W stable cooling capacity within an ultra-thin 25.5mm space, ensuring servers maintain optimal performance during 7×24 continuous operation.
The product features zipper fin and heat pipe composite technology with industry-leading cooling efficiency, fully unleashing the processor's full-core turbo boost performance. Nickel plating surface treatment ensures long-term operational reliability, while the compact dimensions perfectly fit standard 1U chassis, meeting high-density deployment requirements.
Customer value is reflected in supporting 42 servers per 42U rack, maximizing computing density; system availability improved to 99.99%, ensuring business continuity; long-life design reducing maintenance costs; and flexible deployment adaptability to different environmental conditions, providing reliable thermal protection for data center operators, enterprise IT, and edge computing applications.
Q：Do you have your own brand? A：Yes. Our brand name is GREATMINDS. |
Q：Are you a manufacture or trading company？ A：We design and produce thermal products by ourselves. |
Q：Where is your plant? A：We have two plants. One is at Suzhou in eastern China, and the other is at Dongguan in southern China. |
Q：What thermal products do you supply? A：We have heatsink, fan, heapipe, vapor chamber, liquid cooling solution, and so on. |
Q：Which types of heatsinks do you supply? A：Our products cover many processes, extrusion, die casting, skived fin, zipper fin, soldering,friction stir welding, vaccum brazing, and so on. |
Q：What is the leadtime for prototype? A：It depends on different type of products. Usually it takes 2-3 weeks. |
Q：Do you have a NPI process in your company? A：Yes. Tooling samples and trial run will be strictly implemented before mass production. |
Q：What capabilities do you have in your plant? A：We have stamping, machining, and soldering production in house. |
