CPU Cooler Thermal Resistance Guide: Understanding the Core Metric of Cooling Performance

Thermal resistance (Thermal Resistance, abbreviated as θ) is the key metric for measuring a CPU cooler's heat dissipation capability. It represents the resistance that heat encounters when traveling from the CPU to the surrounding air, measured in °C/W (degrees Celsius per watt).

Simple Understanding: The lower the thermal resistance, the better the cooler removes heat from the CPU.

Thermal Resistance = (CPU Junction Temperature - Ambient Temperature) / Power Consumption
      ↓
Higher Thermal Resistance → Poor Cooling → Higher CPU Temperature
Lower Thermal Resistance → Better Cooling → Lower CPU Temperature

---

Why Is Thermal Resistance the Core Metric for Selecting Coolers?

In industrial computers, medical devices, servers, and other applications, the choice of cooler directly determines system stability and lifespan. A low-thermal-resistance cooler can:

Advantage

Description

Lower CPU Operating Temperature

For every 10°C reduction in temperature, electronic component lifespan doubles

Support Higher Power CPUs

Low-thermal-resistance coolers can handle processors with higher TDP

Withstand Harsher Environments

Maintains stable operation in high-temperature industrial settings

Reduce Fan Speed

Lower temperatures allow lower fan speeds for the same cooling, resulting in less noise

Real-World Case Study: An industrial computer manufacturer reduced cooler thermal resistance from 0.25°C/W to 0.15°C/W. Under 35W TDP conditions, CPU temperature dropped by 15°C, while fan speed decreased from 4500 RPM to 2200 RPM, reducing noise from 42dB to 20dB.

View Complete Case Study →

---

How to Calculate Thermal Resistance

1. Basic Formula

T_j = T_a + (P × θ_jc) + (P × θ_cs) + (P × θ_sa)

Symbol

Meaning

Description

T_j

CPU Junction Temperature

Processor core temperature

T_a

Ambient Temperature

Air temperature around the cooler

P

Power Consumption

CPU Thermal Design Power (TDP)

θ_jc

Junction-to-Case Resistance

From CPU chip to package housing

θ_cs

Case-to-Sink Resistance

From package housing to cooler base

θ_sa

Sink-to-Air Resistance

From cooler to surrounding environment

2. Simplified Calculation Example

Assumptions:

  • Ambient Temperature T_a = 77°F (25°C)

  • CPU TDP P = 65W

  • Cooler Thermal Resistance θ_sa = 0.2 °C/W

CPU Temperature = 77 + (65 × 0.2)
                = 77 + 13
                = 100°F (38°C)

If using a lower thermal resistance cooler (θ_sa = 0.12 °C/W):

CPU Temperature = 77 + (65 × 0.12)
                = 77 + 7.8
                = 91°F (32.8°C)

Conclusion: A 40% reduction in thermal resistance lowers CPU temperature by 5.2°C (9.4°F)

---

Factors Affecting Cooler Thermal Resistance

1. Cooler Material

Material

Thermal Conductivity (W/m·K)

Thermal Resistance

Cost

Best For

Pure Aluminum

237

Higher, but low cost

$

Entry-level, space-constrained

Aluminum Alloy (6063)

201

Medium, high value

$$

Mainstream industrial applications

Copper

401

Low, fast heat dissipation

$$$

High-performance needs

Copper-Aluminum Hybrid

Mixed

Balanced performance & cost

$$

Best Value

Recommended Reading: Aluminum vs Copper Heatsinks: Performance Comparison & Selection Guide

2. Fin Design

Parameter

Impact

Optimization Direction

Number of Fins

More fins = larger surface area

Increase while ensuring airflow

Fin Spacing

Affects airflow resistance

CFD optimization for balance

Fin Thickness

Affects strength and weight

Thin & many > Thick & few

Fin Height

Affects surface area

Limited by installation space

3. Fan Performance

Metric

Impact on Thermal Resistance

Airflow (CFM)

Higher airflow = lower thermal resistance

Static Pressure (mmH₂O)

High pressure overcomes cooler resistance

Speed (RPM)

Higher speed = more airflow, but more noise

PWM Control

Intelligent temperature-based adjustment for performance/noise balance

Industrial Application Recommendation: Prioritize coolers with PWM-capable fans. At 77°F (25°C) ambient, maintain CPU temperature below 167°F (75°C) for long-term reliability.

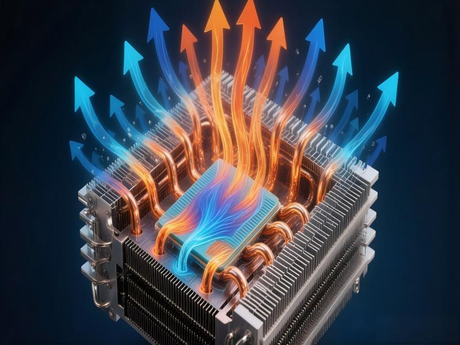

4. Heat Pipe Technology

Heat Pipe Type

Thermal Resistance Range

Characteristics

No Heat Pipe (Passive)

0.4-0.8 °C/W

No noise, but limited cooling capacity

2 Heat Pipes

0.25-0.35 °C/W

Entry-level active cooling

4 Heat Pipes (Direct Contact)

0.12-0.18 °C/W

Mainstream High-Performance

6+ Heat Pipes

0.08-0.12 °C/W

Ultra-high performance, enthusiast-grade

---

Thermal Resistance Requirements by Application

Application

Recommended Thermal Resistance

Notes

Industrial Control Panel (IPC)

< 0.2 °C/W

Space-constrained, 24/7 operation

Medical Equipment

< 0.15 °C/W

High reliability requirements

Outdoor/Wide Temperature

< 0.12 °C/W

Must handle -40°C to +70°C

High-Performance Computing

< 0.1 °C/W

High-TDP processors

Standard Servers

0.15-0.25 °C/W

Cost-sensitive

---

How to Reduce Thermal Resistance: 5 Optimization Strategies

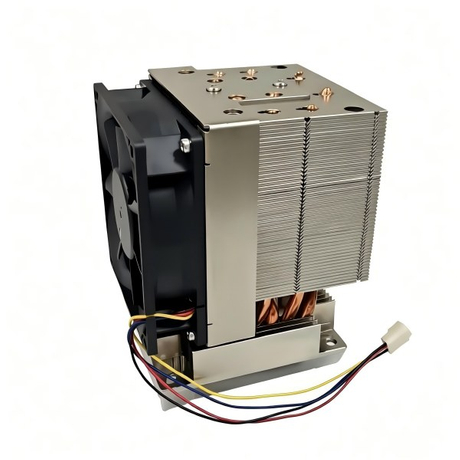

Strategy 1: Choose More Efficient Cooler Design

  • Prioritize copper-aluminum hybrid or pure copper coolers

  • Choose designs with moderate fin density (too dense affects airflow)

  • At least 4 heat pipes with good contact to CPU

Strategy 2: Optimize Mounting Interface

Key Point

Method

Thermal Paste

Thin, even layer; recommended conductivity >5 W/m·K

Pre-applied Paste

Some premium coolers come with it; saves time

Liquid Metal

Ultra-high performance, but short-circuit risk; use cautiously in industrial settings

Mounting Torque

Tighten to spec torque; avoid misalignment

Strategy 3: Improve Chassis Airflow

Best Airflow: Front-to-Back / Bottom-to-Top

┌─────────────────────┐
│  [Intake]           │
│    ↓ ↓ ↓            │
│  ┌───────────────┐  │
│  │   Heatsink    │  │
│  │   ↑↑↑↑        │  │
│  └───────────────┘  │
│    → → → [Exhaust]  │
└─────────────────────┘

Strategy 4: Lower Ambient Temperature

  • Control ambient temperature at 64-75°F (18-24°C) in server rooms

  • Avoid placing equipment near heat sources

  • Ensure adequate space around cooler (intake side >2 inches / 5cm)

Strategy 5: Choose Appropriate Fan Configuration

Configuration

Pros & Cons

Single Fan (High Speed)

Simple design, but noisier

Dual Fans (Medium Speed)

Balanced solution, recommended

Multi-Fan (Low Speed)

Strong cooling, but higher cost and space requirements

Fanless (Passive)

Zero noise, but requires larger heatsink

---

Frequently Asked Questions

Q1: Is the difference between 0.15°C/W and 0.2°C/W significant?

Very significant. At 65W TDP:

  • 0.15°C/W thermal resistance: Temperature rise of 9.75°C

  • 0.2°C/W thermal resistance: Temperature rise of 13°C

The 3.25°C difference affects CPU lifespan and stability in long-term operation. If your CPU experiences throttling or shutdown in high-temperature environments, reducing thermal resistance is an effective solution.

Q2: Can I reduce thermal resistance infinitely by increasing fan speed?

No. Thermal resistance has a lower limit (determined by cooler material and design). Beyond this limit:

  • Increasing speed has limited effect on cooling improvement

  • Noise increases dramatically (doubling speed increases noise by ~6dB)

  • Fan lifespan shortens

  • The optimal solution is to improve cooler design, not simply increase speed

Q3: How to verify cooler thermal resistance in industrial environments?

  1. Specification Verification: Request thermal resistance test reports from suppliers (based on JEDEC standards)

  2. Actual Measurement:

    • Use FLIR infrared thermal camera to observe temperature distribution

    • Run at full load for 4 hours continuously; record maximum temperature

    • Compare ambient temperature vs. CPU junction temperature differential

---

Selection Checklist

When selecting a CPU cooler, check the following:

Check Item

Standard

☐ Thermal resistance meets requirements

θ_sa ≤ target value (refer to application table above)

☐ Size compatibility

Cooler size ≤ chassis available space

☐ Socket compatibility

Supports your CPU socket type (LGA/AM5/PGA/etc.)

☐ TDP support

Cooler TDP rating ≥ CPU TDP

☐ Acceptable noise level

Full-load noise < environment requirement (e.g., medical <25dB)

☐ Reliability certification

Wide temperature support (-10°C to +70°C or wider)

☐ Supplier support

Mass production capability, technical support response

---

Summary

Thermal Resistance Definition

Unit: °C/W, lower is better

Calculation Formula

T_j = T_a + (P × θ_total)

Influencing Factors

Material, fins, heat pipes, fans, installation

Industrial Recommendation

θ_sa < 0.15-0.2 °C/W

Optimization Direction

Optimize design > Increase fan speed
