400W Switch Chip in 1U Space:3-Stage Remote Cooling Beat Impossible Layout

Situation: 400 Watts. 44.5mm of Space. A PCB Full of Obstacles

A globally leading Tier-1 communications equipment manufacturer came to us at a critical juncture in their next-generation high-density network switch development program. The engineering team faced two compounding challenges that were pushing their thermal design to the limit.

Challenge 1: Extreme power density in an impossibly shallow chassis.

The target Broadcom high-power switch ASIC dissipated 400W of heat—concentrated in a single package on the board. The entire system, however, was required to fit within a 1U rack-mounted enclosure, leaving a vertical clearance of just ~44.5mm above the PCB. With that constraint alone, conventional heatsink-on-chip designs were already off the table: there simply isn't enough height to mount a traditional forced-air cooler that can handle 400W at any reasonable airflow.

Challenge 2: A PCB layout that blocked every obvious cooling path.

The board surrounding the switch ASIC was densely populated—tall capacitors, power modules, and other protruding components created a complex obstacle field in every direction. Any thermal solution requiring straight-line heat conduction paths from the chip to a remote heat exchanger had to navigate around this three-dimensional minefield. A single poorly routed heat pipe would either mechanically conflict with a component or introduce enough bending losses to kill thermal performance.

The client's requirement was clear and non-negotiable:

design a fully remote, end-to-end cooling solution that dissipates 400W from the switch chip, fits within 1U, and reliably routes heat around all PCB obstructions.

Task: Design a Remote Thermal Solution With Three Simultaneous Constraints

The core engineering mission was defined by three constraints working against each other simultaneously:

No single thermal component could solve this alone. The solution required a fully integrated, three-stage thermal architecture where each stage had to be precisely engineered to work within the physical boundaries of the other two.

Action: A Three-Stage Architecture — VC Spreader → 3D Heat Pipe Array → Remote Fin Stack

Rather than forcing a compromise between performance and space, our engineering team designed a cascaded remote cooling system that separates heat collection, heat transport, and heat rejection into three specialized stages.

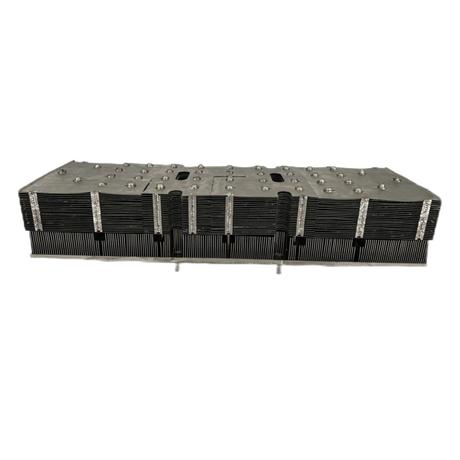

Stage 1 — Heat Collection: Vapor Chamber + Copper Fin Base

The first challenge was collecting 400W from a single chip package and spreading it uniformly before any heat transport could begin.

We selected a vapor chamber (VC) as the primary heat spreader, bonded directly to the top surface of the switch ASIC. The VC's two-phase internal fluid dynamics eliminate hot spots instantaneously—critical when a single chip is generating 400W in a confined area. The VC was integrated with a copper fin base plate to form a compact, low-profile collector assembly that interfaces directly with the heat pipe array above it, all within the tight vertical envelope.

Why VC over a solid copper spreader? At 400W from a small package footprint, the heat flux density is high enough that a solid copper spreader would allow significant temperature gradients to develop across its surface. The VC's effective thermal conductivity—typically 10–100× that of copper in the lateral direction—was the right tool for this job.

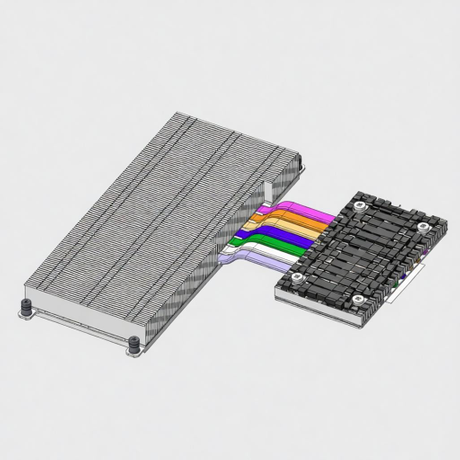

Stage 2 — Heat Transport: 7-Pipe 3D Bent Heat Pipe Array

This is where the real engineering challenge lived.

To route 400W of heat from the chip location to a remote fin stack at the chassis edge, while navigating around tall capacitors, power modules, and other PCB components in all three spatial dimensions, we designed a 7-pipe heat pipe array using full 3D bending geometry.

Each heat pipe was individually routed with bends in the X, Y, and Z axes to thread through the obstacle field on the PCB without mechanical interference. Key design principles included:

• 7 heat pipes in parallel: Distributing the heat load across seven pipes keeps each pipe operating well within its maximum heat transport capacity, maximizing long-term reliability and reducing thermal resistance per pipe.

• 3D bend routing: Unlike planar heat pipe layouts that only accommodate obstacles in two dimensions, the 3D-bent pipes allow vertical step-overs and lateral detours in a single continuous pipe run—critical given the height variation of PCB components.

• Bend radius control: Each bend was engineered to maintain adequate vapor flow cross-section through the curve. Excessive bending can partially collapse the pipe wick structure and introduce local thermal resistance; our design kept all bend radii within validated limits for the pipe diameter selected.

• CFD-assisted route planning: Heat pipe routing was validated with full CFD simulation prior to prototype build, confirming that the combined array thermal resistance met the system budget before any hardware was committed.

Stage 3 — Heat Rejection: Remote Copper Base + Fin Array + System Fan

The 7 heat pipes terminate at a remote fin stack assembly positioned away from the chip, toward the chassis airflow exit. This stage is responsible for rejecting 400W into the system's forced-air stream.

The remote assembly consists of:

• A copper base plate bonded to all 7 heat pipe condenser ends, providing a uniform thermal interface to the fin array

• A high-density aluminum fin stack sized to the available chassis footprint and system airflow

• Thermal coupling to the system-provided 50 CFM fan array, with fin pitch and orientation optimized for this specific airflow condition

The remote placement of the fin stack was not simply a packaging decision—it was a deliberate thermal system design choice. By moving the air-side heat exchange away from the chip and into a region of the chassis with clean, undisturbed airflow, the solution avoids the recirculation and bypass effects that degrade performance when large heatsinks are mounted directly over congested PCBs.

Result: 400W Resolved in 1U — and a Reusable Design Blueprint

After CFD simulation validation, prototype build, and thermal characterization testing under full load conditions, the results confirmed the design's performance:

Beyond the performance results, this project delivered two additional forms of value:

Engineering validation of 3D heat pipe routing for complex PCB environments. The multi-pipe, multi-axis bending approach was proven viable at 400W—establishing a design pattern directly reusable for other high-power, layout-constrained boards in the telecom and datacom space.

System-level thermal co-design methodology. The solution's performance depends critically on the coordination between the heat pipe routing geometry and the chassis airflow field. This project validated our end-to-end thermal system design capability: not just component design, but the full chain from chip interface to system air management.

What This Means for Your Next High-Power Board Design

If your engineering team is working on any of the following scenarios, the architecture validated in this case is directly applicable:

• 400W+ switch ASICs or NPUs in 1U/2U chassis

• Dense PCB layouts where straight heat pipe routing is blocked by tall components

• Remote cooling requirements where chip-top heatsink mounting is not feasible

• Limited airflow environments where the thermal solution must extract maximum performance from available CFM

Our thermal engineering team brings the complete toolkit to projects like this: vapor chamber design, multi-pipe 3D routing, CFD simulation for routing and fin optimization, prototype build, and full test characterization—all under one roof.
