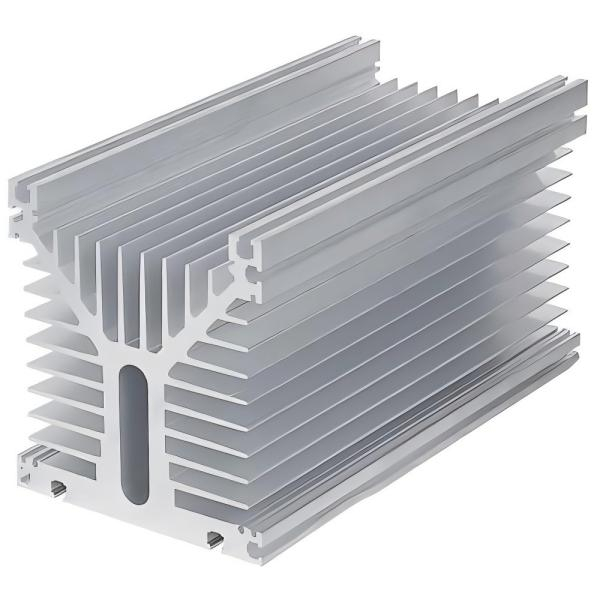

EH002 Extruded Heatsink High Aspect Ratio Extruded Heatsink for Telecom Base Stations

Product Name：Extruded Heatsink EH002
Feature：AL6063
Size：Coustomized
Surface Treatment：Degreasing,Anodizing, Nickel Plating, Chromating
Application：PC,Telecom,Industry,Lighting

Model:
EH002

Availability:

Quantity:



Inquiry Add to Basket

Introduction

Aluminum extrusion heat sinks offer a cost-effective and highly efficient solution for cooling heat-generating electronic components. While standard extrusions handle basic cooling, our high-end custom extrusion designs are engineered for the most thermally challenging applications—including PCs, telecommunications infrastructure, industrial equipment, and high-power LED lighting.
To maximize design flexibility, our aluminum extrusion heat sinks can be further customized with embedded heat pipes, captive mounting hardware, and color anodizing—giving you a complete thermal solution, not just a component.

high aspect ratio al6063 heatsink

Our Value Proposition

Why choose our extrusion heat sinks for your critical applications？

Unmatched Thermal Efficiency
Achieve a fin height-to-pitch ratio of over 20:1, enabling significantly higher surface area density. This means you get superior heat dissipation in a compact footprint, perfect for high-density electronic enclosures.
Ultra-Wide Capabilities (No Size Limits)
Unlike standard extrusions limited by die size, our advanced friction stir welding (FSW) process allows us to create heat sinks with virtually unlimited widths. This eliminates design constraints and enables cooling for large-format power systems and industrial drives.
End-to-End Customization
From material selection (AL6063-T5/T6) to surface finishing (anodizing, nickel plating, chromating) and mechanical assembly (heat pipes, mounting hardware), we provide a single-source solution. You get a ready-to-install part, reducing your supply chain complexity.
Proven Material Performance
Using premium AL6063 alloy, our heat sinks offer excellent thermal conductivity (approx. 200 W/m·K), good corrosion resistance, and optimal extrudability—ensuring both performance and durability in demanding environments.
Cost-Effective for Medium to High Volumes
Extrusion is inherently economical for production runs. By optimizing the die design and post-processing, we deliver the lowest possible cost per performance ratio without sacrificing quality.

Technical Specifications

Product Name	Extruded Heatsink（EH002）
Material	AL6063
Size	Customized
High Aspect Ratio( Fin Height / Fin Pitch)	More than 20 times aspect ratio
Max Width	Ultra wide width can be made by friction stir welding process.
Surface Treatment	Degreasing, Anodizing, Nickel Plating, Chromating
Application	PC, Telecom, Industry, Lighting

Applications

Our custom extrusion heat sinks are ideal for thermal management in:

PC & Computing – CPU coolers, GPU coolers, high-performance servers
Telecommunications – 5G base stations, RF amplifiers, network switches
Industrial – Motor drives, power supplies, IGBT modules, rectifiers
Lighting – High-power LED grow lights, street lights, stadium lighting

Why Partner With Us

Engineering Support – Our team helps you optimize fin geometry for your specific airflow and space constraints.
Rapid Prototyping – Quick turnaround on sample extrusions to validate performance.
Quality Assurance – 100% inspection on critical dimensions and surface finish.

Call to Action

Ready to lower your system temperatures？
Request a design review or a free quote for your custom aluminum extrusion heat sink today.

Item	Question	Answer
1	Do you have your own brand?	Yes. Our brand name is GREATMINDS.
2	Are you a manufacture or trading company?	We design and produce thermal products by ourselves.
3	Where is your plant?	We have two plants. One is at Suzhou in eastern China, and the other is at Dongguan in southern China.
4	What thermal products do you supply?	We have heatsink, fan, heapipe, vapor chamber, liquid cooling solution, and so on.
5	How many employees in your company?	We have over 120 employees in our company.
6	Could you provide ODM service?	Yes. We have many ODM designs for customers.
7	What software do you use for thermal simulation?	We usually use Flotherm.
8	What is the leadtime for a thermal simulation?	It takes about 1 week.
9	What is the leadtime for production?	It depends. It takes about 4 weeks for general heatsink after tooling, and takes 5-7weeks for heatpipe/vapor chamber solutions.
10	What certificates do you have in your company?	We have ISO9001 and ISO14001, and will get OHSAS18001 by the end of 2019.
11	What is the leadtime for a RFQ?	It takes 2-3 working days.
12	Do you provide DFM(Design for Manufacturing)?	Yes. We usually provide DFM for every customer drawing.
13	Do you have vapor chamber products?	Yes. We have flat vapor chamber, ultra-thin vapor chamber, and 3D vapor chamber.
14	Do you have liquid cooling solution? What are the applications?	Yes. We have liquid cooling solutions for telecom, automotive, electricity, and new energy applications.
15	Do you have standard products for server application?	Yes. We have a lot of heatsinks for server application, like Skylate 1U and 2U heatsinks.
16	What capabilities do you have in your plant?	We have stamping, machining, and soldering production in house.
17	Do you have any patent in your company?	Yes. We have over 20 patents in the thermal field.
18	Which types of heatsinks do you supply?	Our products cover many processes, extrusion, die casting, skived fin, zipper fin, soldering, friction stir welding, vaccum brazing, and so on.
19	What is the leadtime for prototype?	It depends on different type of products. Usually it takes 2-3 weeks.
20	Do you have a NPI process in your company?	Yes. Tooling samples and trial run will be strictly implemented before mass production.
